Dual-Tilt Elevated System Overview

Dual Tilt Elevated System One Sheet

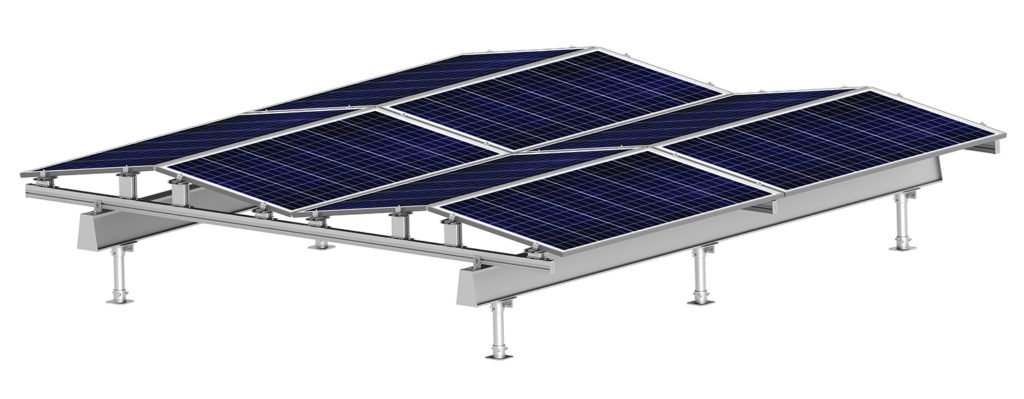

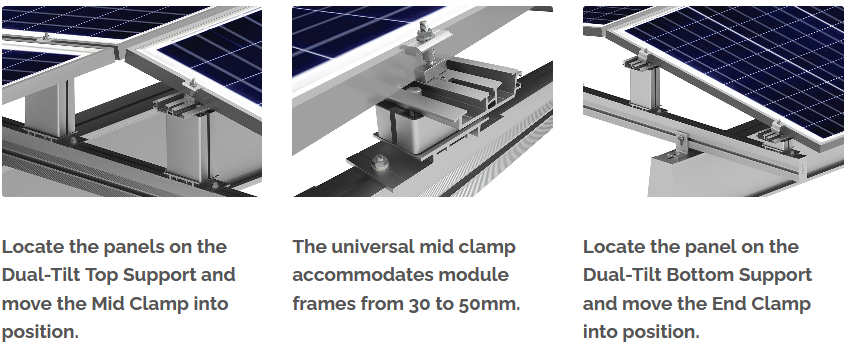

The Dual-Tilt Elevated System minimizes the number of roof penetrations required by incorporating its SB3500 beam technology with span up to 25 feet.  This unique PV mounting system allows for high-power densities on rooftops with minimal self-shading.  The dual tilt design increases system capacity up to 35% compared to a traditional south-facing PV design approach.  The unique universal clamping system can secure PV modules ranging in thickness from 30mm to 50mm.

The integrated bonding pins address the stringent bonding requirement of UL 2703 creating a continuous bond path throughout the array. These pre-assembled universal attachments maximize module density while mitigating shading issues all by design.




Features & Benefits
