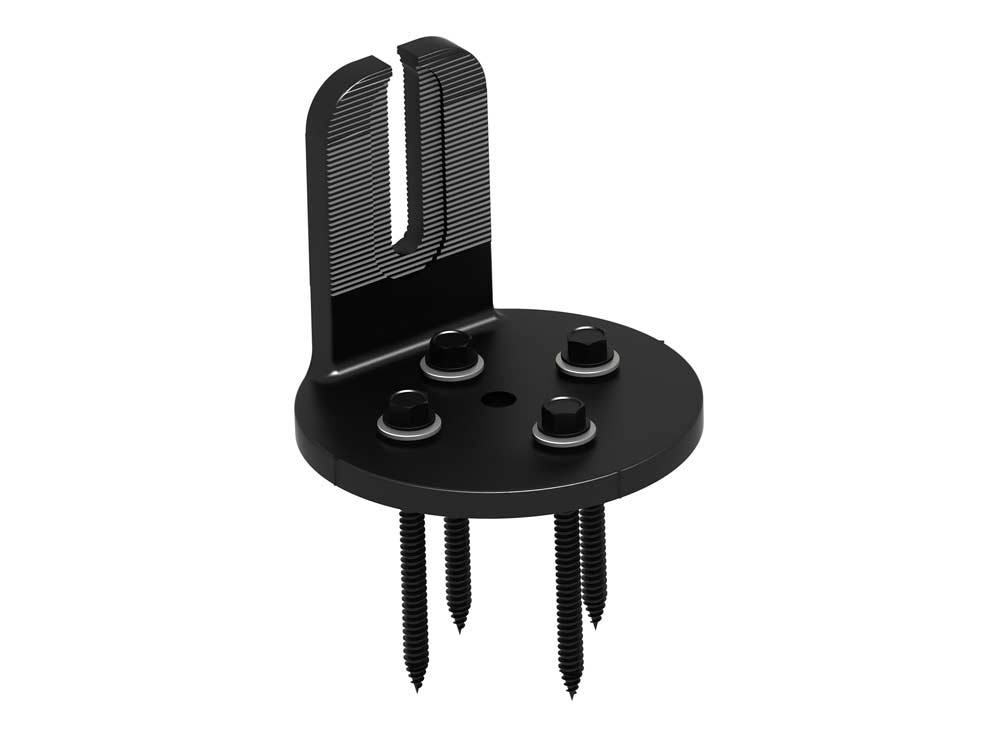

NanoMount One-Sheet
SOLAR’S FASTEST ATTACHMENT
Damaging roof shingles used to be one of a solar installers’ worst challenges. Now, the easy, affordable solution is NanoMount®, SunModo’s newest solar mounting innovation. The mount eliminates the need to lift shingles and dramatically reduces the installation time.
The NanoMount Advantage
The fastest roof attachment in solar
5 levels of protection against water penetration
Eliminates the need to lift shingles and prevents damage to shingle
Versatile mounting options including direct-to-decking
High-Velocity Hurricane Zone Approved – Passed TAS 100 (a) Wind-Driven Rain Test
All materials are compatible with asphalt shingles and single-ply roof membranes
KEY FEATURES
Aesthetically pleasing unibody aluminum cast construction
360-degree positioning, serrated surface on both sides for rail mounting
Alignment markers enable easy installation
Open L-Foot for fast rail attachment
4 Deck Screws for Deck Mount or 1 Lag Bolt for Rafter Mount
Integrated Ultra Soft Weather Resistant gasket
TECHNICAL DATA
Application: Residential roof coverings, commercial single-ply roof membranes
Material: High-grade aluminum, 304 stainless steel hardware
Finish: Black powder coating
Roof Attachment: Rafter and decking
Structural integrity: IBC and IRC Compliant
Warranty: 25 years
